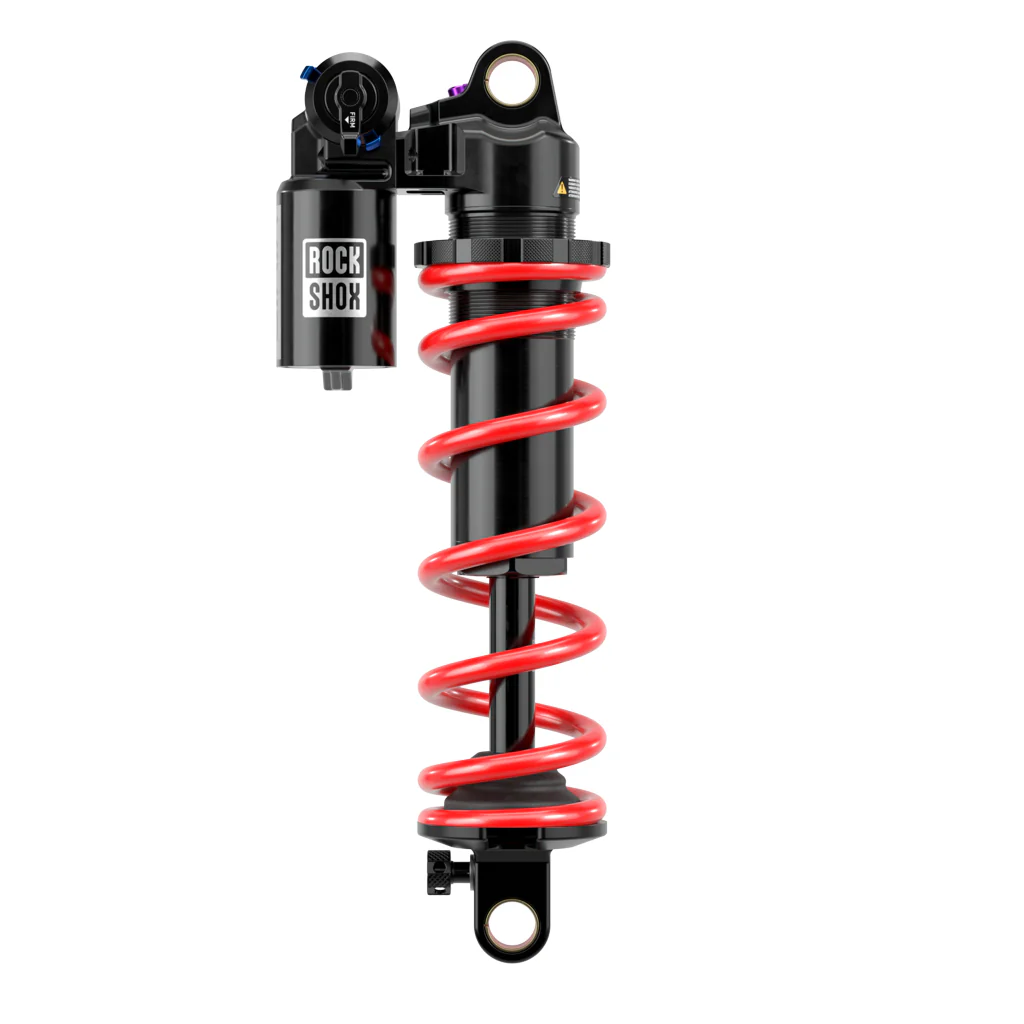

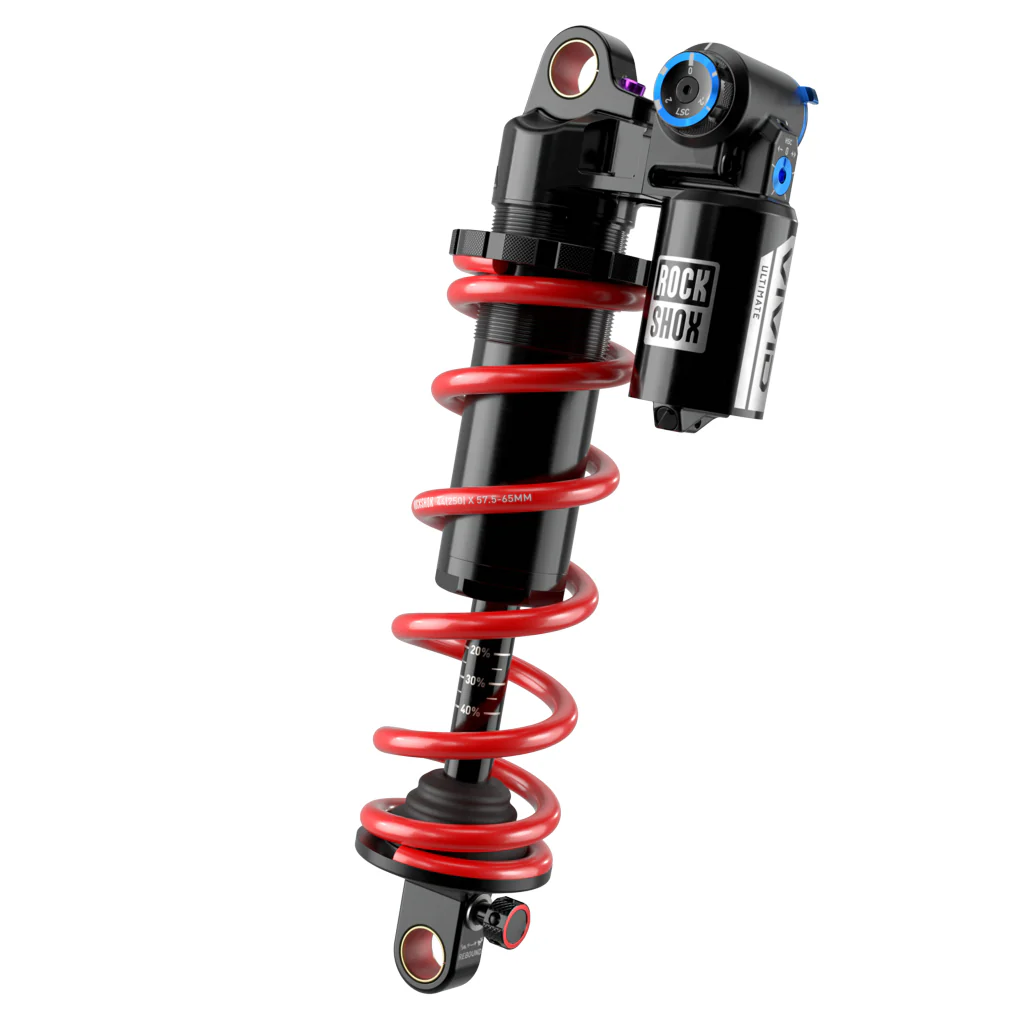

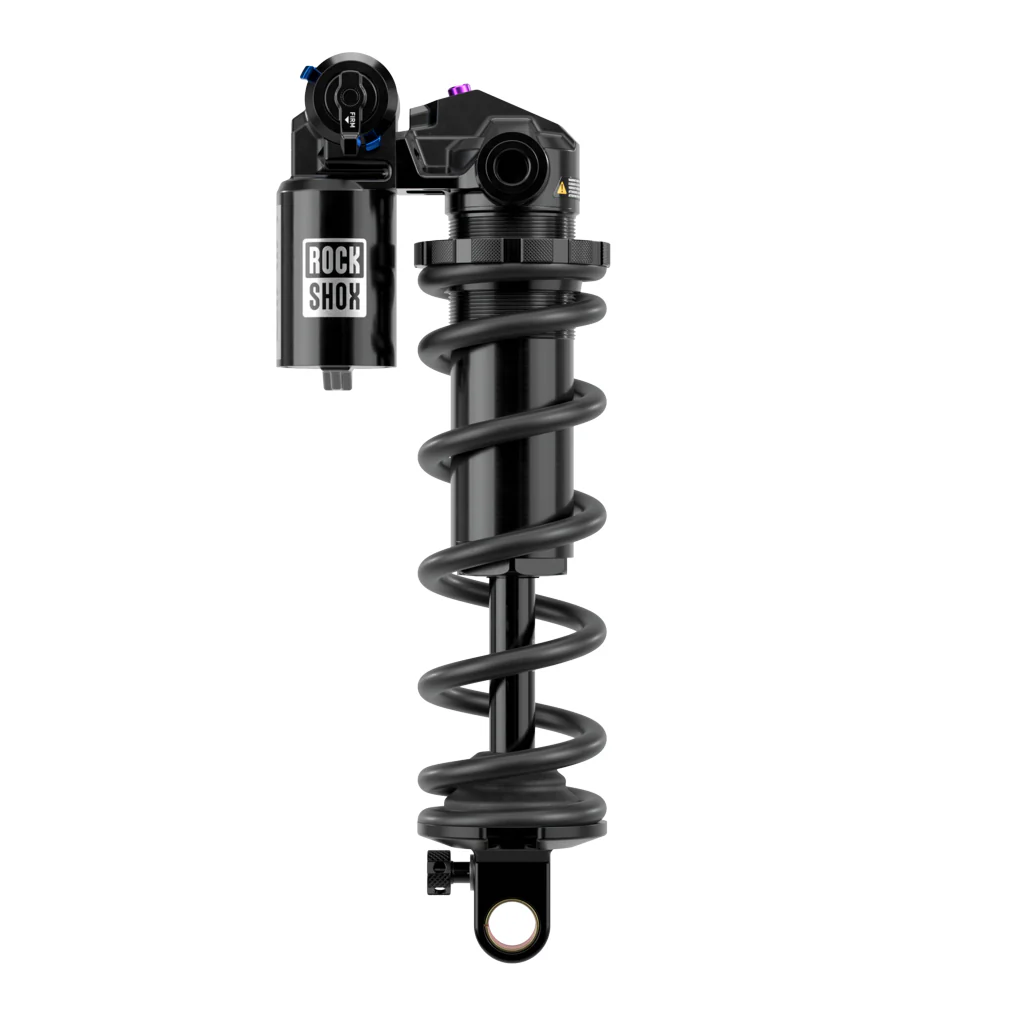

There’s a reason everyone loves coil—the feel is unmistakable—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2T damper’s new main piston compression tunes deliver confident mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Distilling decades of coil dominance into a shock built for today’s enduro, E-MTB, and downhill bikes, Vivid Coil Ultimate carries the unmistakable heritage of coil into a new era of performance.

Features:

• NEW RC2T damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk

• NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping

• NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction

• NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support

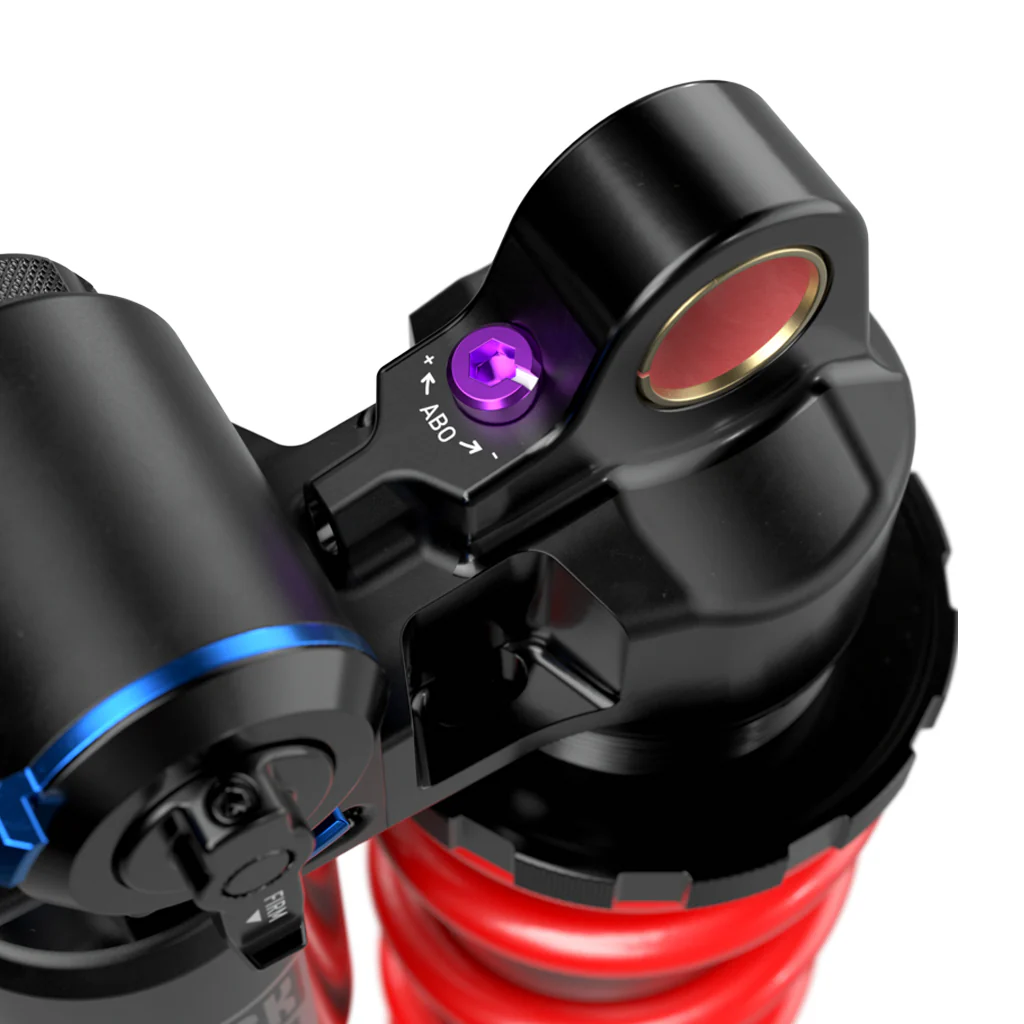

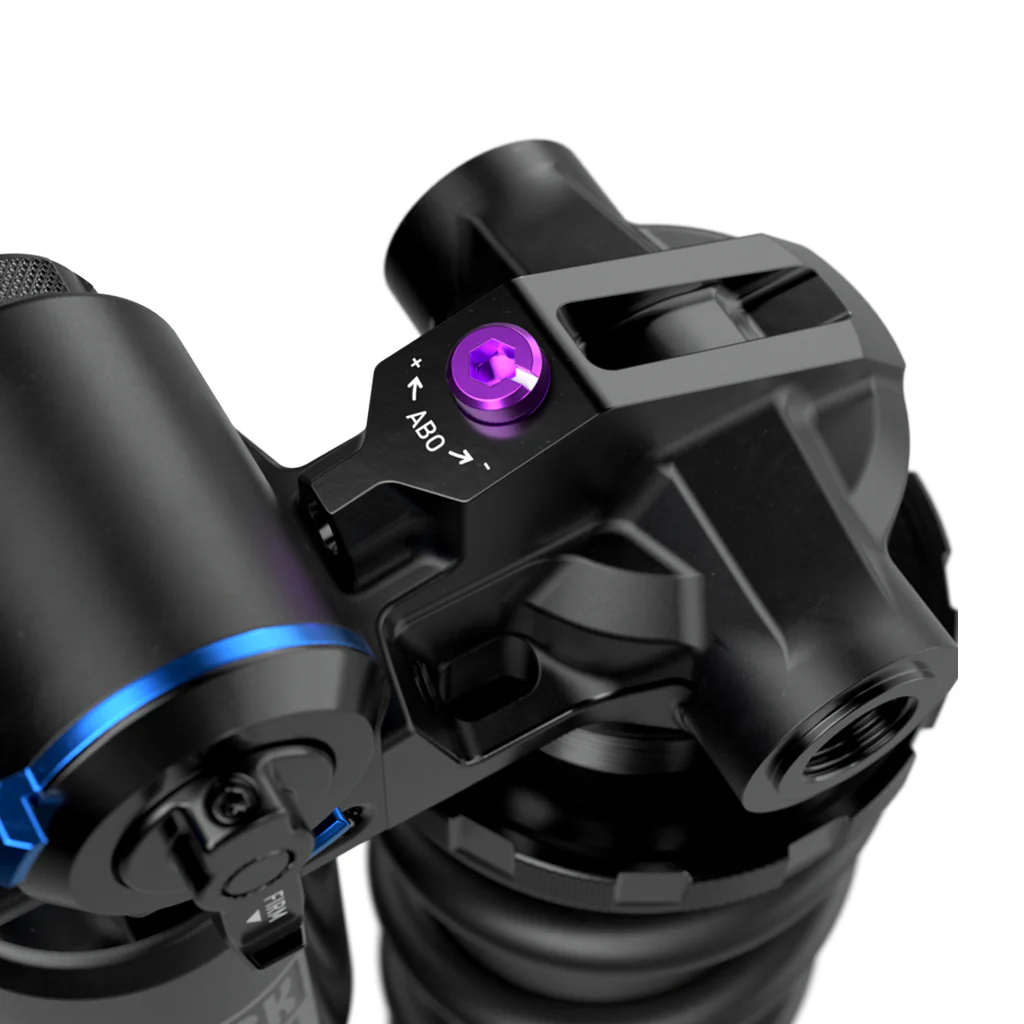

• Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel

• Removable Rebound knob doubles as HSC and ABO adjuster

• 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights

• 8x30 Bearing Adapter available for all standard eyelets, configured as hardware (upcharge applies)

Model ID: RS-VIVC-ULT-D1

Specifications:

Eye to eye / Stroke: 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Damper Type: RC2T Adj. Hydraulic Bottom Out
Rebound Tune: R25, R55
Compression Tune: C22, C26, C30, C34, C37, C40, C43
Lockout Force: X05, X25, X45
Shaft Eyelet: No Bushing, No Bushing - 270 Deg Rotation, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 75 Deg Rotation, Standard - 90 Deg Rotation
Body Eyelet: No Bushing, Standard, Trunnion
E-Bike Approved: E-bike Approved
Bottom Out: Externally Adjustable Bottom Out
