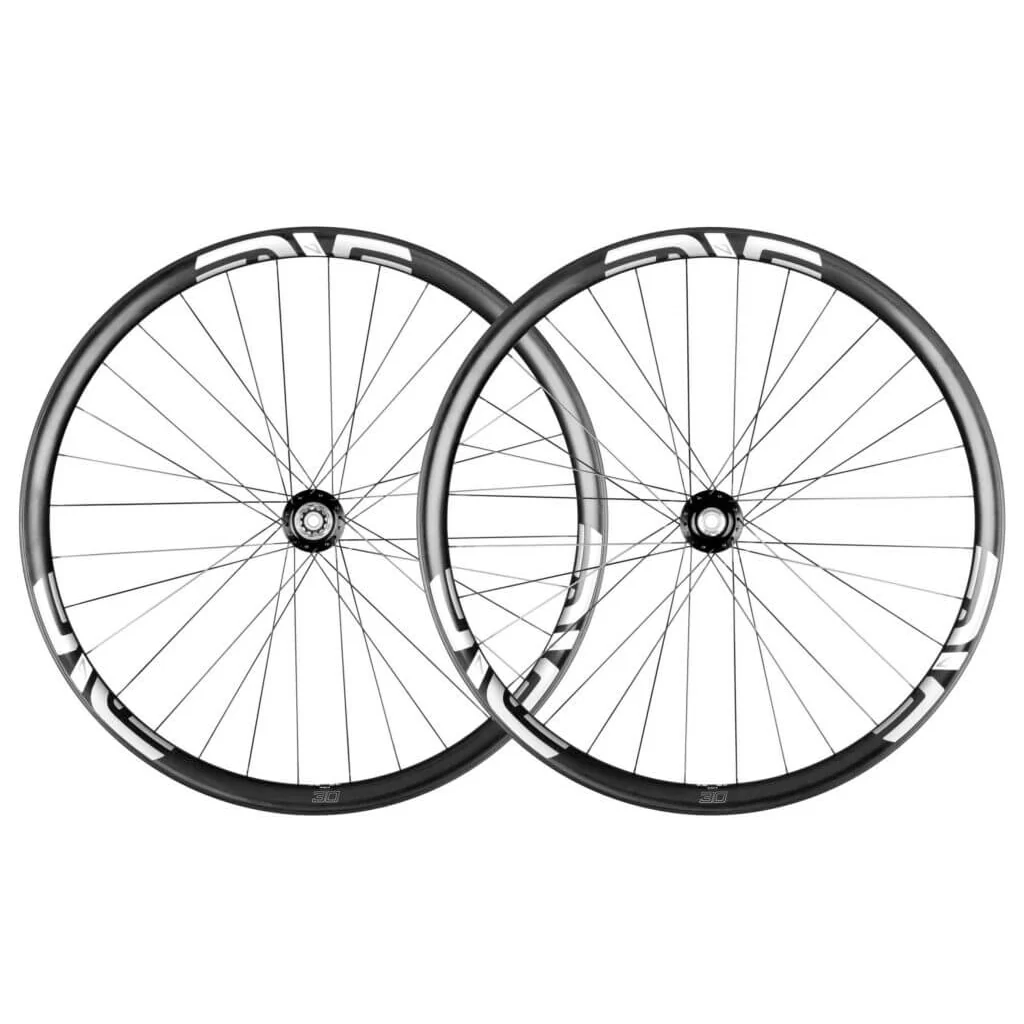

Trail-tough, quick-mannered, and completely innovative, the M7 is the trail wheel on steroids that protects you from flat tires and lets you toss your tubeless tape in the bin.

PRODUCT DETAILS:

• Application: Trail, All-Mountain
• Inner Rim Width: 30mm
• Lifetime Incident Protected

BUILD SPECS

Hub Offering: Industry Nine Hydra
Spacing: Front: 15x110 Boost | Rear: 12x148 Boost, 12x157 Superboost
Wheelsize: 27.5", 29"

DIMENSIONS

Rim Depth Front/Rear: 27mm / 27mm
Internal Width Front/Rear: 30mm / 30mm
External Width Front/Rear: 38mm / 38mm
Hole Count Front/Rear: 32 / 32
Effective Rim Diameter: 27.5" 559mm / 29" 599mm
Recommended Tire Size: 2.3 in - 2.5 in
Max Tire Pressure: 35 PSI

WEIGHTS

27.5" Rim Weight Front/Rear/Set: 535g / 535g / 1072g
29" Rim Weight Front/Rear/Set: 580g / 580g / 1160g
27.5" i9 Hydra 6B Hubs Front/Rear/Set: 863g / 985g / 1849g
29" i9 Hydra 6B Hubs Front/Rear/Set: 917g / 1039g / 1956g

SKU 27.5:
100-2106-025 (12X148 - XD)
100-2106-037 (12X148 - Micro Spline)
100-2106-030 (12X157 - Micro Spline)

SKU 29:
100-2106-027 (12X148 - XD)
100-2106-038 (12X148 - Micro Spline)
100-2106-031 (12X157 - XD)
100-2106-032 (12X157 - Micro Spline)
