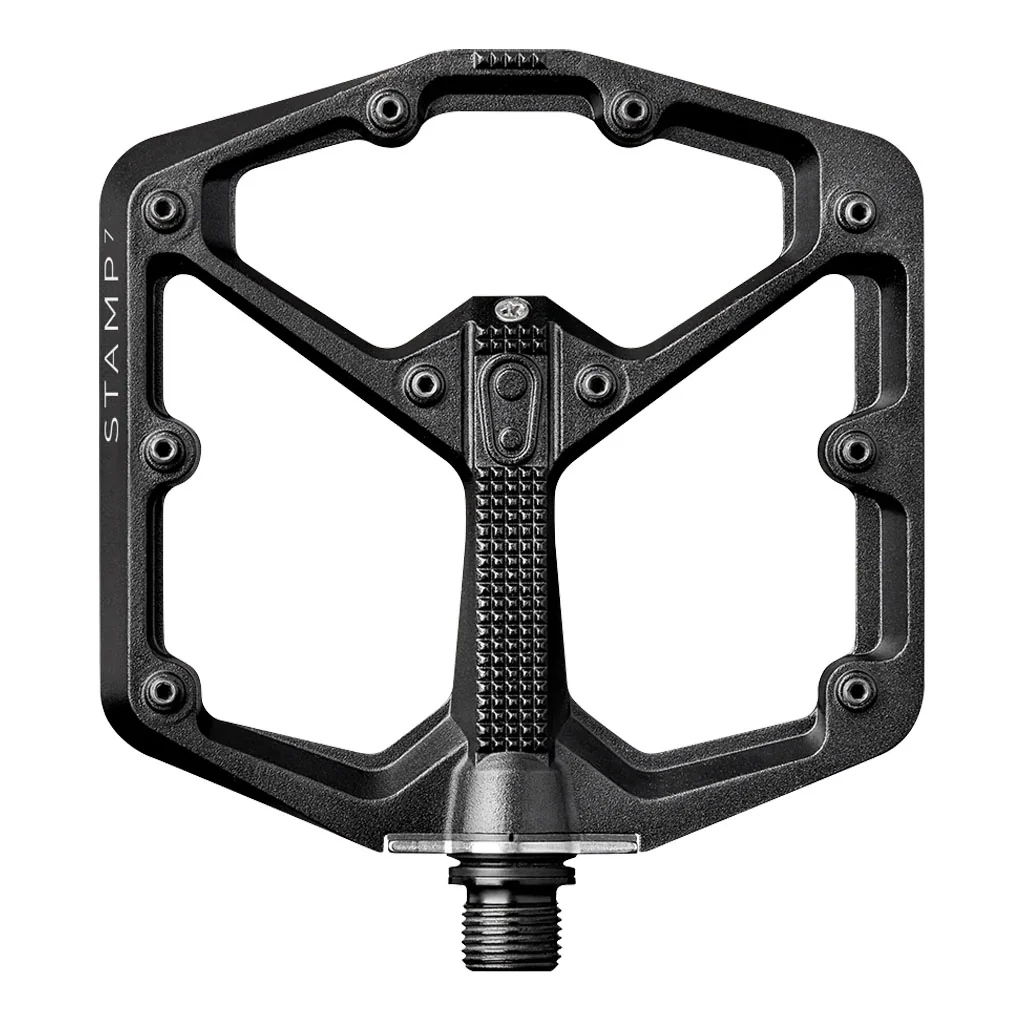

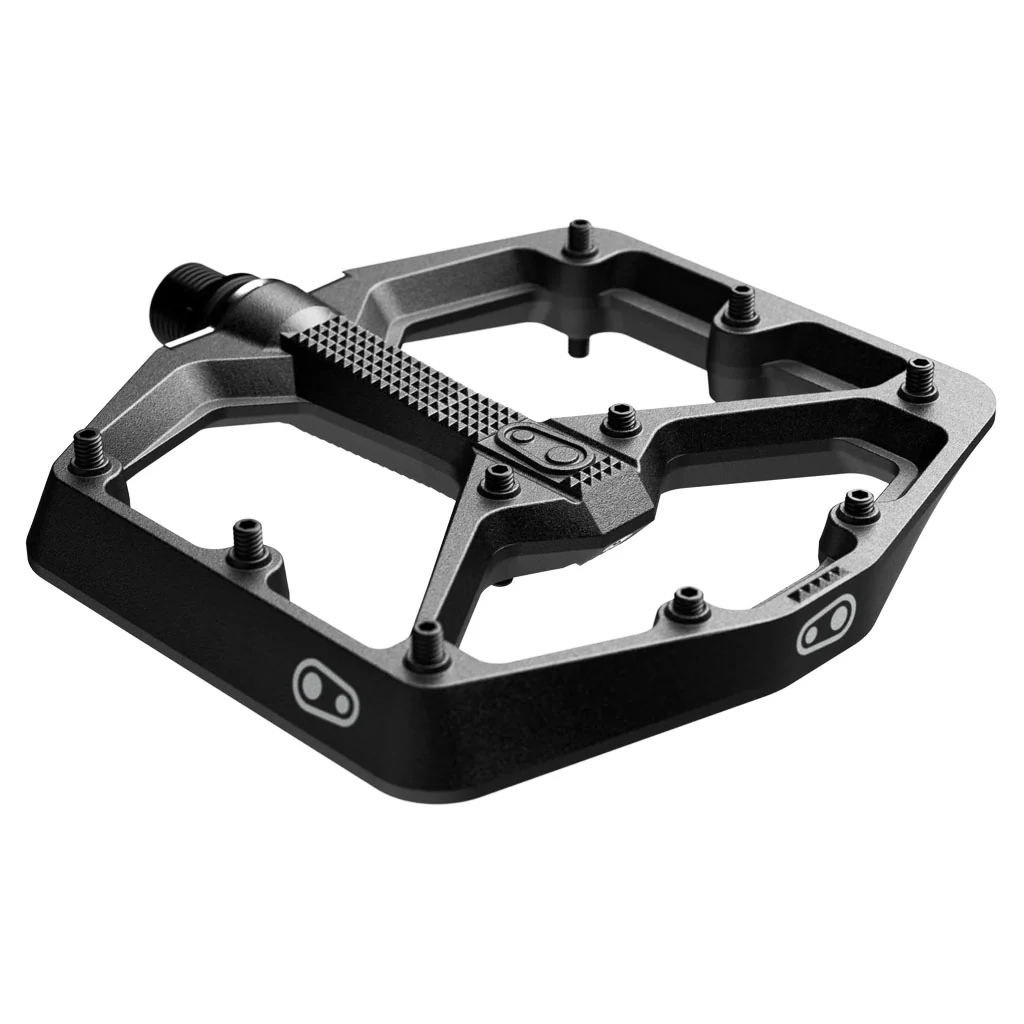

Size-specific pro-level concave platform pedal provides optimal shoe/pedal interface.

• Optimal surface area

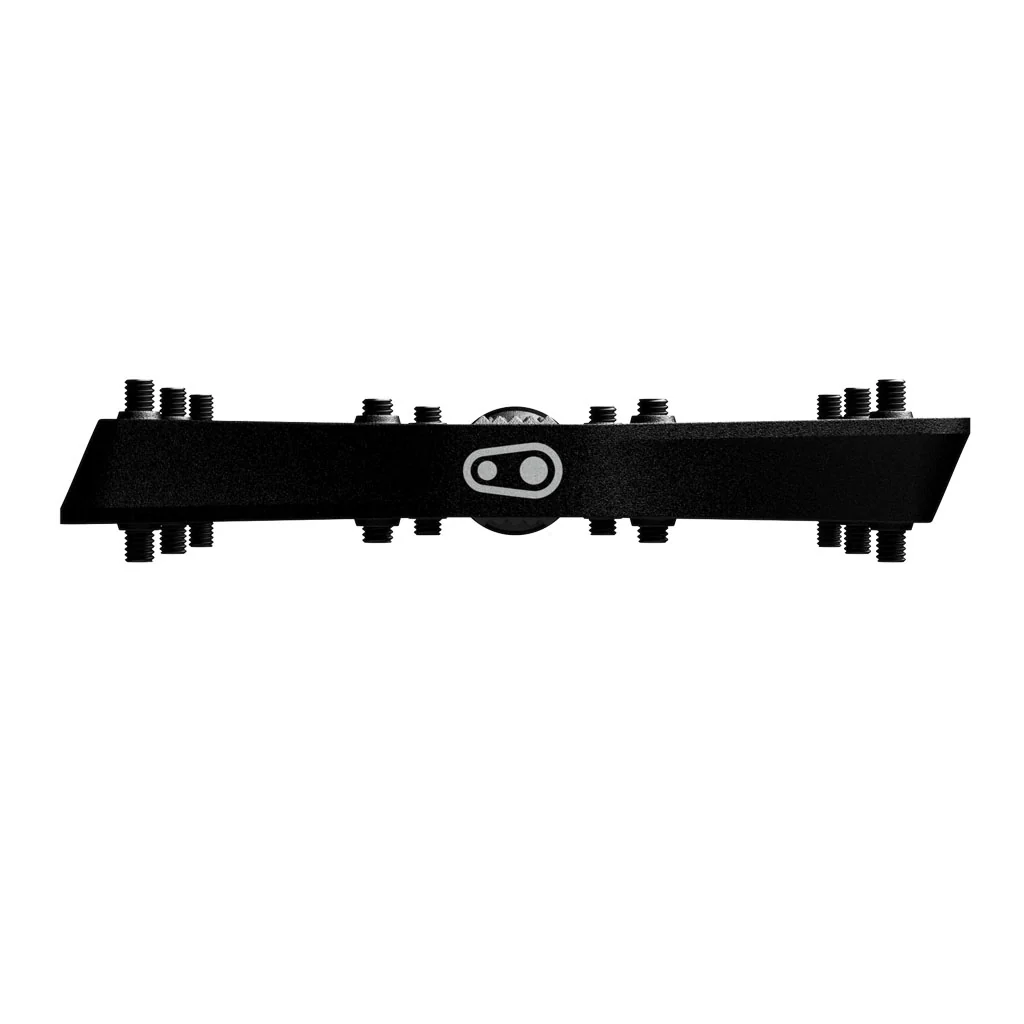

• Minimal profile 11mm-13mm thin
• Concave platform for secure foothold
• 10 adjustable pins per side for grip
• Premium bearings & seal system
• Grease port for easy maintenance


SPECIFICATIONS
Body Material: Forged 6061-T6 Aluminum
Footprint: 100mm x 100mm (Small)
Footprint: 114mm x 111mm (Large)
Traction Pins: 10 adjustable per side
Pin Length: 8mm inner, 10mm outer
Inner Bearing Type: Igus LL-glide bearing
Outer Bearing Type: Igus LL-glide bearing
Spindle Material: Forged SCM 435 Chromoly Steel
Max Rider Weight: No restriction
Weight: 345g per pair (Small)
Weight: 375g per pair (Large)
Warranty: 5 years

Stamp Small: Recommended for shoe sizes: 5-10 (us) // 37-43 (eu)
Stamp Large: Recommended for shoe sizes: 10-15 (us) // 43-49 (eu)

SKUs
Small: 16004 (Black)
Large: 16002 (Black)
Small: 16636 (Blue)
Large: 16635 (Blue)

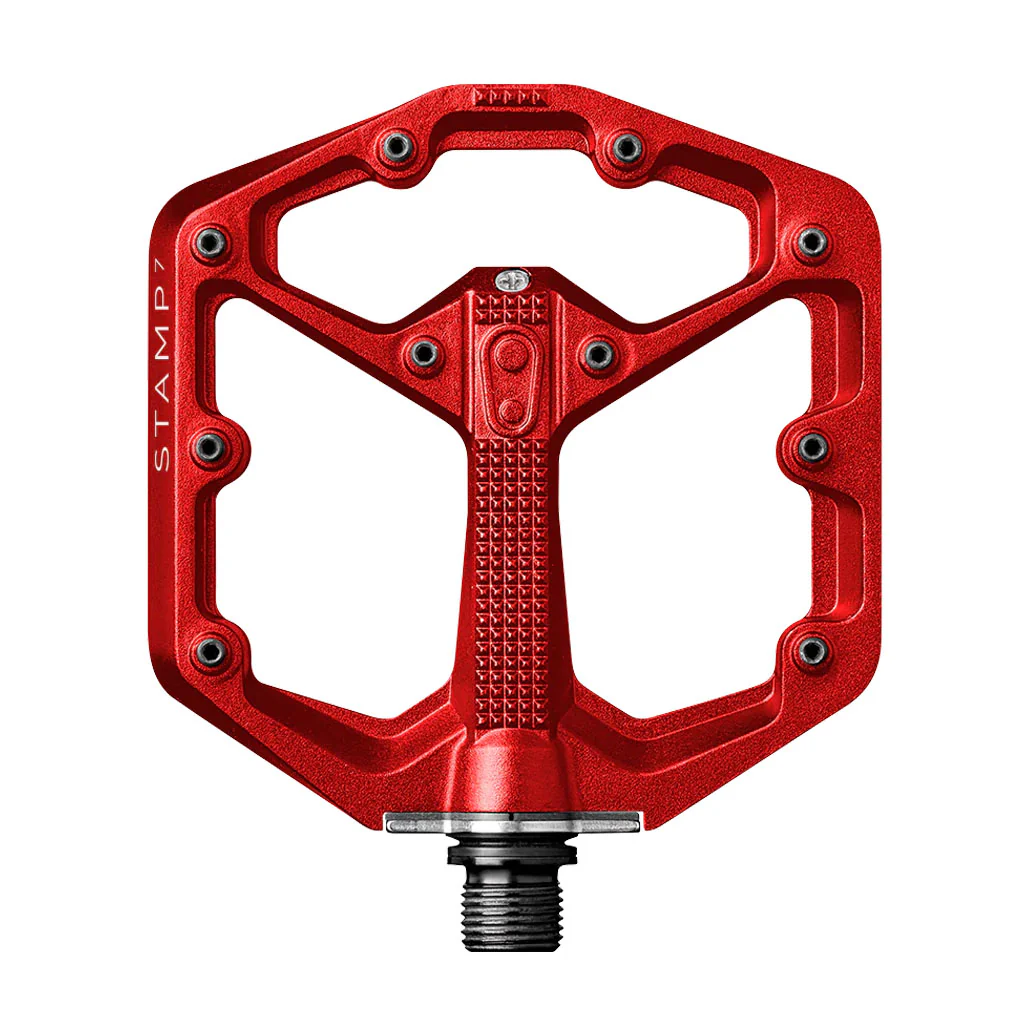

Small: 16005 (Red)
Large: 16003 (Red)
