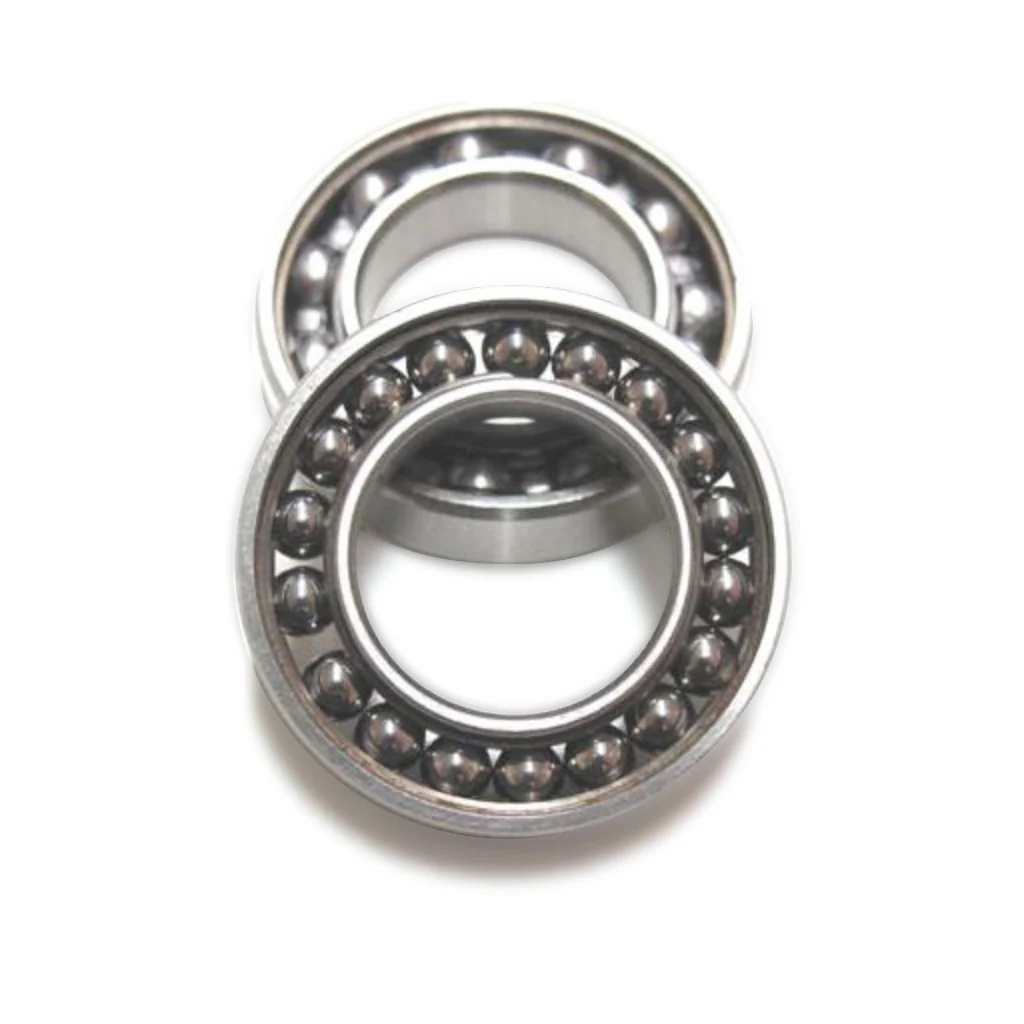

Enduro Bearings pioneered MAX type bearings almost 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.

Features:

• MAX are designed for use in suspension pivots
• High precision Grade 10 balls with ABEC 3 precision
• No retainer means these bearings have 40 percent more static capacity
• Filled with Marine High Pressure grease
• LLU seals have two sealing lips on each seal
• Static load: 613bf,.72N
• Weight: 18.45g
• Size: 20mm x 32mm x 7mm

Note: Bearings may differ in colours and look.

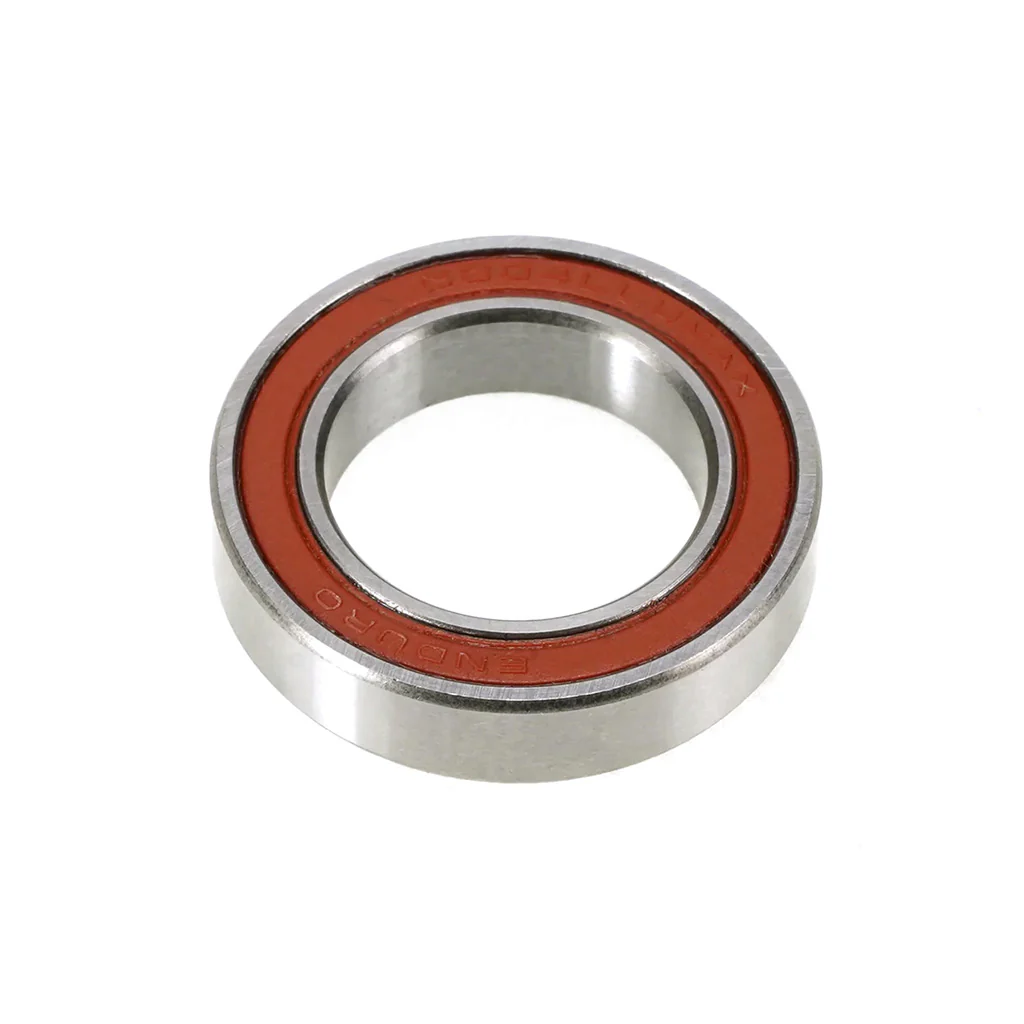

MODEL ID: 6804 LLU MAX
